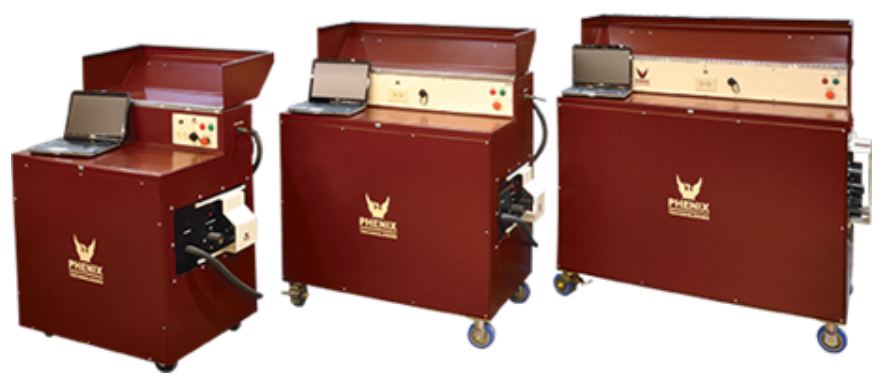

You are currently viewing Core Loss Tester

Core Loss Tester

Excessive core loss negatively affects the efficiency and reliability
of a motor. Core loss testing is necessary to insure the quality of a
motor or motor rewind.

  • Perform Core Loss Testing on Stators, Rotors and
  • Perform Hot Spot Testing to identify localized shorted
    laminations that cause hot spots and insulation failure in
    a motor
  • Fully automated with data acquisition
  • True sine wave output ensures accurate and repeatable
    test results
  • Simple set-up and operation
Model Approx.
Max Testing
CL10B 500 HP
CL25B 1,250 HP
CL60B 2,500 HP
CL125B 5,000 HP
CL300B 12,000 HP
CL500B 20,000 HP
