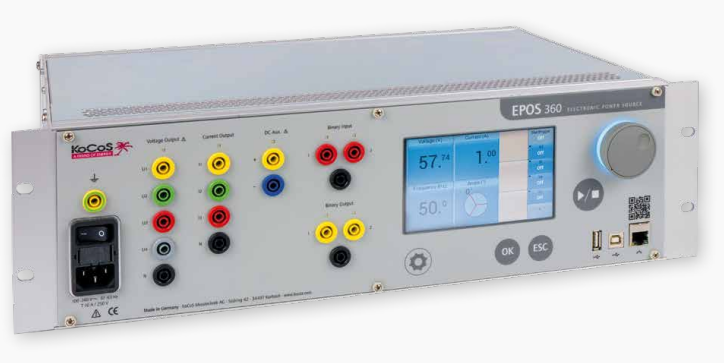

System concept EPOS 360 features four voltage signal sources and three current signal sources. The signal characteristics are computed by a highperformance signal processor and output via highaccuracy D/A converters and electronic power amplifiers. The parameters amplitude, phase angle and frequency are se日本藤素
parately and independently adjustable, as well as overload and short-circuit protected and can be varied over a wide range during output.
Signal sources
- 4 independent voltage channels up to 300 V
- 3 independent current channels up to 16 A
- Synthetic signal generation
- Wide frequency range
- Freely selectable signal shapes
- Play-back of transient signal characteristics
- High accuracy
- Very low THD
- Separate auxiliary power supply
