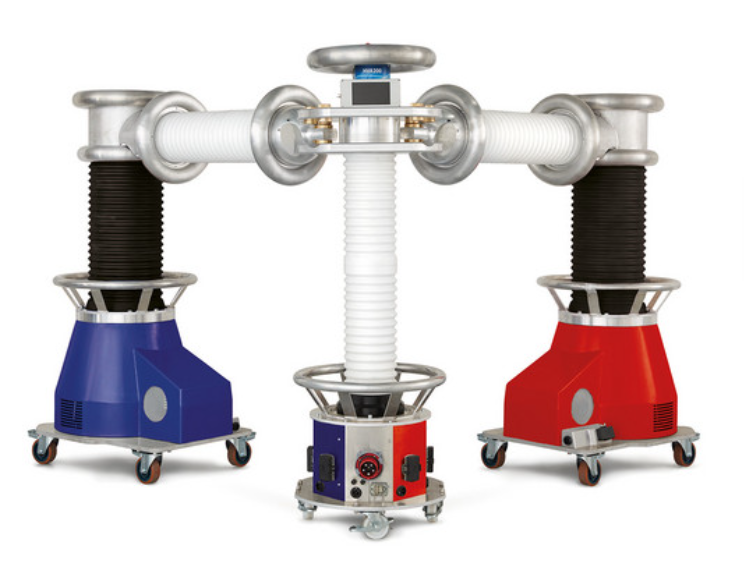

HVA200

Pure sinusoidal VLF hipot test set with 200 kV

VLF output voltages of up to 200 kVpeak allow you to perform voltage withstand tests on assets with network voltages as high as 141 kVrms. Our HVA200 system is far more compact and lightweight than any other withstand testing solution providing this voltage level. The test system can optionally be upgraded with a highly sensitive cable diagnostic module to perform PD and TD diagnostics in addition to the withstand test.

Performance: Outstanding features in terms of size, weight (950 kg) and performance (max. 10 µF).

Duty cycle: Operating time of this test set is not thermally limited; it may operate continuously.

Connectivity: On site, no external PC is needed. All results can be later downloaded via optical fiber or USB for further investigation and easy reporting via software tool.

High power: Sufficient power to charge cables up to 10 µF, allowing to test extra-long cables.

Service and maintenance: With only a small amount of oil used, the HVA200 test set is an almost dry-type test system. This means less maintenance and no hassle during transport.



Output voltage max. 200 kVpeak, 141 kVrms
Output load 0.6 μF @ 0.1 Hz @ 141 kVrms
Weight ca. 950 kg / 2.094 lbs
